High Efficiency SMT Laser Stencil Cutting Machine MF-6080 Laser Cutting Machine for Solder Paste Printer Screen Stencil Cutting
Whatsapp:+8613728632793, Skype:Joaquin Xie,Wechat:Joaquin15
Whatsapp:+8613424013606,Skype:sensenhenhao,Wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
MERAIF MF-6080 Laser Cutting Machine Technical Parameters :
|
Parameter category |
Parameter value |
||
|
Equipment Model |
MF-680PRO |
MF-6080 |
MF-6120 |
|
Cutting Speed |
15000-30000pads/h |
20000-50000pads/h |
20000-50000pads/h |
|
Cutting Area |
680*680mm |
600*680mm |
600*1200mm |
|
Cutting Thickness |
≤0.5mm |
≤0.5mm |
≤0.5mm |
|
Cutting Accuracy |
±0.005mm |
±0.005mm |
±0.005mm |
|
Repeatability |
±0.002mm |
±0.002mm |
±0.002mm |
|
Laser |
I PG Fiber Laser |
I PG Fiber Laser |
I PG Fiber Laser |
|
Laser Power |
100W/200W |
100W/200W |
100W/200W |
|
Operating Software |
HY CUT |
HY CUT |
HY CUT |
|
Data Format |
STC/DXF/GBR/LMD |
STC/DXF/GBR/LMD |
STC/DXF/GBR/LMD |
|
Machine Body |
Marble |
Marble |
Marble |
|
Machine Size |
1550X1400X1550mm |
1580*1420*1550mm |
2080*1500*1550mm |
|
Mesh Frame Size |
740X1500X40mm（ MAX） |
740X1500X40mm（ MAX） |
740X1500X40mm（ MAX） |
|
Stencil Sheet Size |
760*760mm（ MAX） |
900X600mm（ MAX） |
1320X600mm（ MAX） |
|
Machine Weight |
2400Kg |
2200Kg |
3200Kg |
|
Input Power |
AC220V/2KW |
AC220V/2KW |
AC220V/2KW |
|
Auxiliary Gas |
Oxygen/Nitrogen/Compressed Air |
Oxygen/Nitrogen/Compressed Air |
Oxygen/Nitrogen/Compressed Air |
|
Gas Pressure |
0.6 ~1.5MPa |
0.6 ~1.5MPa |
0.6 ~1.5MPa |
|
Temperature |
22±2℃ |
22±2℃ |
22±2℃ |
|
Humidity |
＜60% |
＜60% |
＜60% |
MERAIF MF-6080 Laser Cutting Machine Details:
Laser cutting uses the high-power density spot formed after the laser beam is focused to quickly heat the material to its vaporization temperature, evaporate and form tiny holes.
Through the continuous relative movement between the beam and the material being cut, a continuous narrow slit is formed to achieve the purpose of cutting.
Laser cutting is combined with CNC machine tools and computer-aided design and manufacturing (CAD/CAM) software.
It has unlimited contour cutting capabilities and convenient cutting trajectory modification capabilities.
Through computer pre-design, it can cut the entire board of countless complex parts, which not only saves materials, but also can cut multiple parts at the same time, realize fully automated operation, and even realize laser automatic cutting of three-dimensional space curves.
Feature:
1. Germany IPG fiber laser, long life and maintenance free.
2. Compatible with pre oxygen cutting and compressed air cutting, provide pressure real-time monitoring.
3. The newly upgraded cutting sofeware, optimized operation logic and interface, with visualization stable disply, simple
and convenient to use.
4. The newly upgraded high-precision hole patching mode, simple and fast to complete the hole patching operation.
5. The newly upgraded visual positioning algorthm, automatic compensation for deviation caused by circuit board error.
6. The enwly upgraded power off memory funcstion, one button to return to the last cutting status.
7. The newly upgraded positioning accuaracy compensation algorithm, eliminates errors caused by verticality and rail
torsion.
8. The newly upgraded temperature compensation algorithm, eliminates the errors caused by temperature changes at
customer site.
9. The newly upgraded cutting path algorithm, eliminates the problem of longer cutting time caused by short segments of
data files.
10. The newly upgraded cutting head and nozzle system, more suitable for high-precision stencil cutting and micro holes
driling.
11. The newly upgraded standard parameter library, convenient for customers to select and adjust parameters.
12. The newly upgraded function for one button to adjsut the cutting height automatically, which is accurate, convenient
and fast.
13. The cutting sofeware compalible with STC/DXF/GBR/LMD cutting formal directly and comes with the genuine.

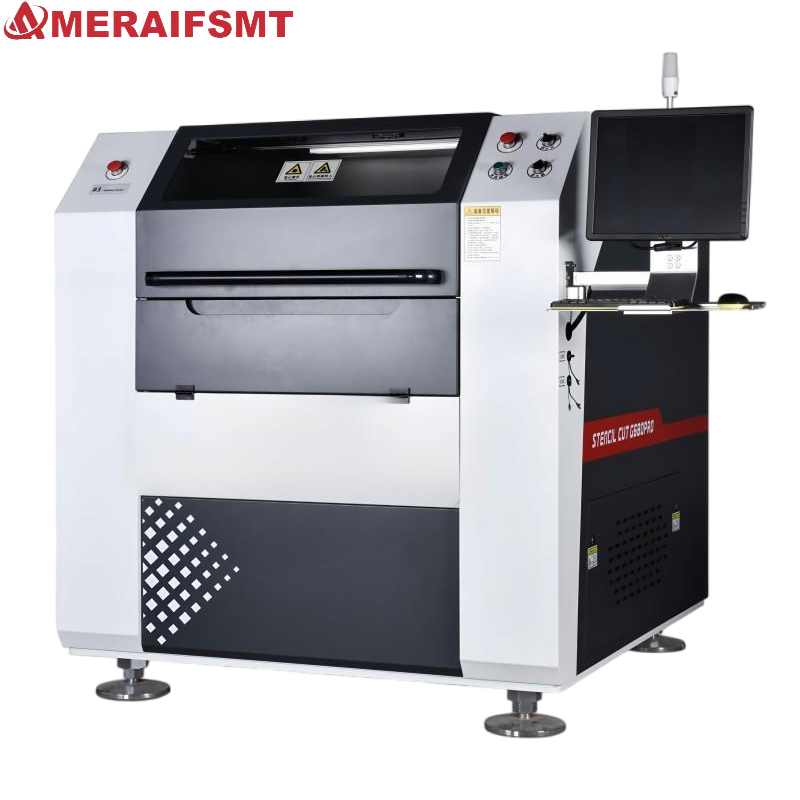

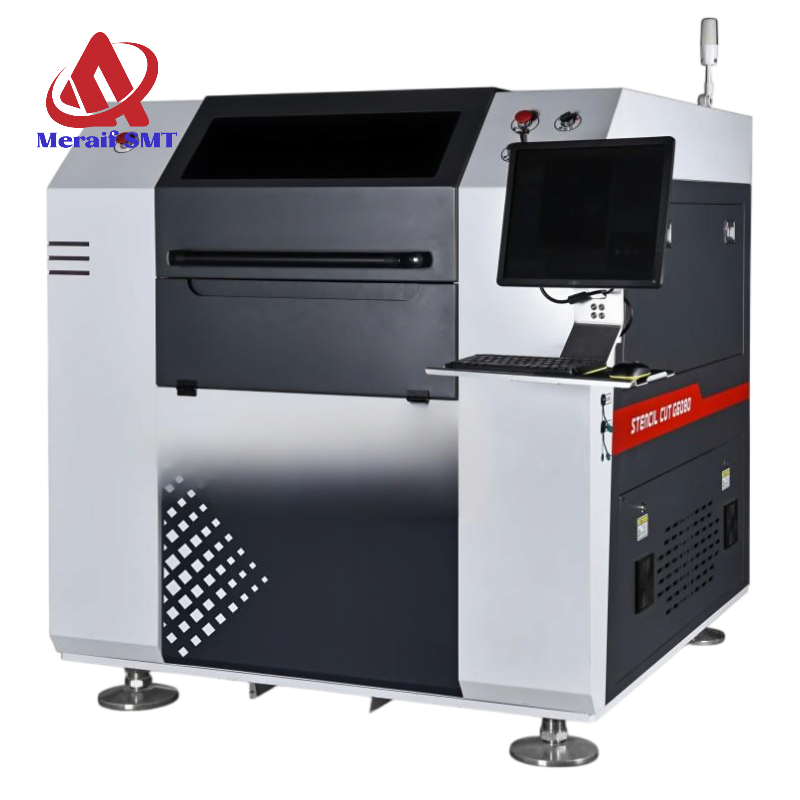

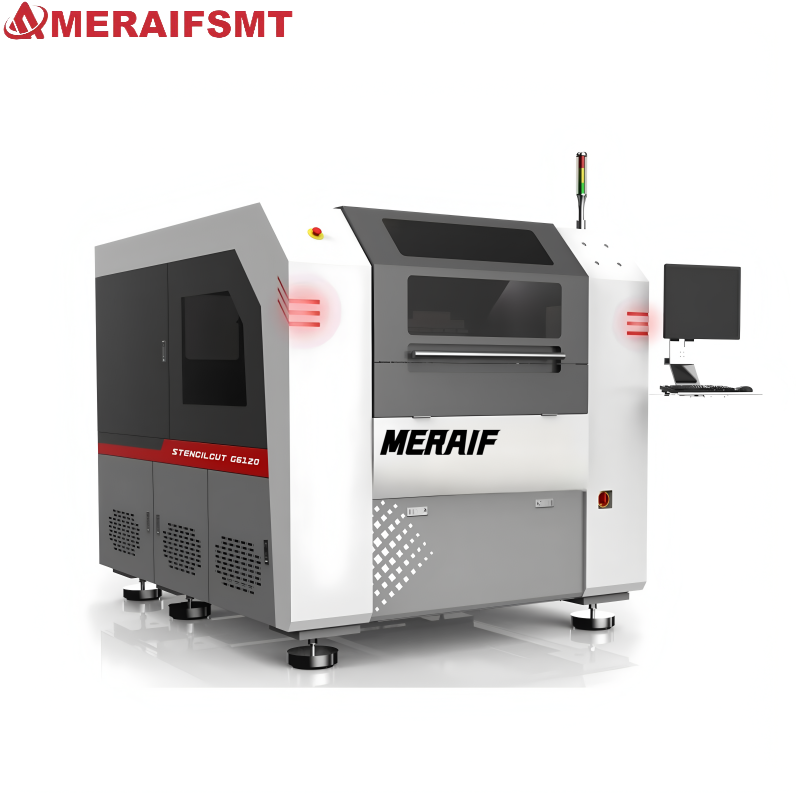

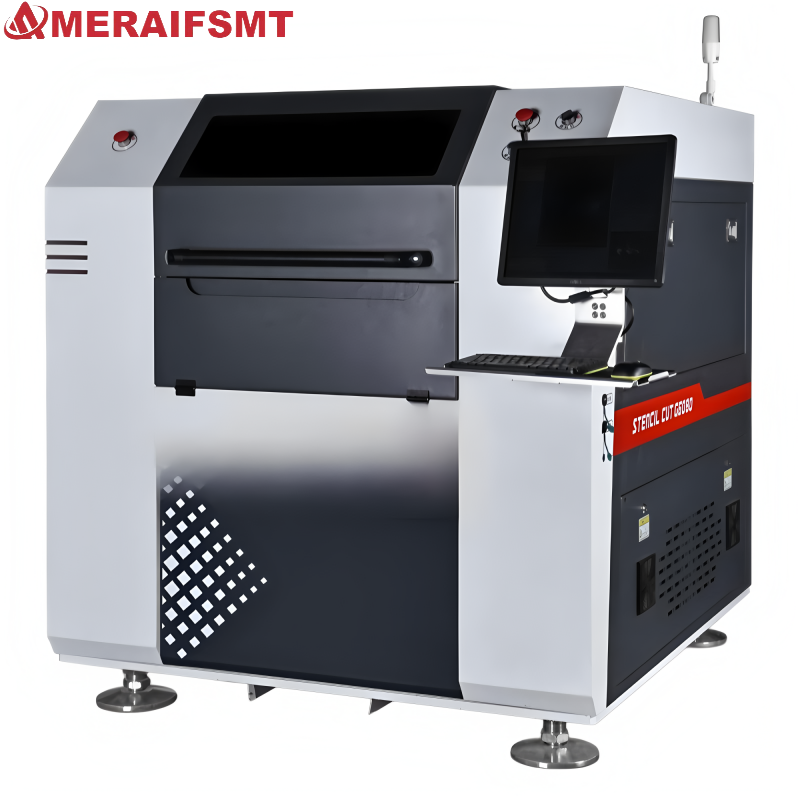

MERAIF MF-6080 Laser Cutting Machine Picture Show:
Exhibition:

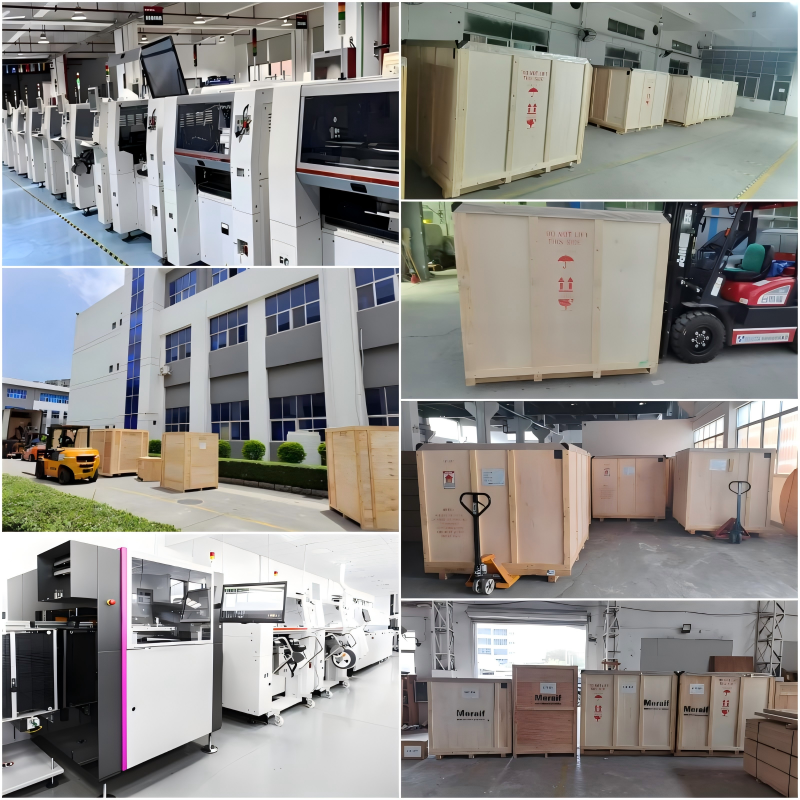

SMT LINE:
